YOLOv3 ROI Detection with OCR: Building a Reliable Extraction Pipeline

Problem framing

When extracting text from structured images or scanned documents, OCR quality depends heavily on how well the region of interest (ROI) is detected first. In our workflow, YOLOv3 handled ROI detection while a separate OCR layer performed text extraction.

ROI detection as a system component

The detector was only one part of the pipeline. We designed around operational needs:

• predictable ROI coordinates for downstream processing
• tolerance to lighting, skew, and scan noise
• fast inference for batch processing
• fallback behavior when detections are weak

This perspective helped us avoid overfitting to ideal samples.

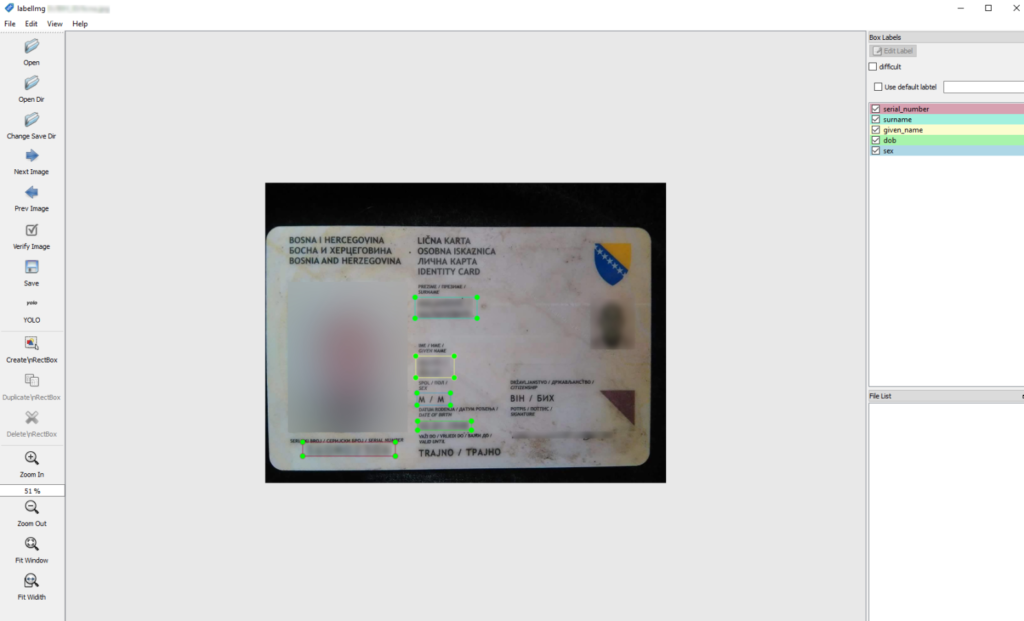

Dataset labeling and class strategy

Labeling quality directly affected OCR success. We used ROI classes that matched downstream extraction tasks instead of overly granular classes that increased ambiguity. Consistent bounding box rules improved both detector learning and later text cropping.

YOLOv3 architecture context

The implementation used YOLOv3 because it provided a practical speed/accuracy tradeoff and a simple training workflow for custom ROI classes. For document ROI extraction, the objective is not generic object detection benchmarking, but stable and repeatable crops for downstream OCR.

Transcribed setup commands (replacing the code screenshot)

# Clone and build Darknet
git clone https://github.com/AlexeyAB/darknet
cd darknet

sed -i 's/OPENCV=0/OPENCV=1/' Makefile
sed -i 's/GPU=0/GPU=1/' Makefile
sed -i 's/CUDNN=0/CUDNN=1/' Makefile
sed -i 's/CUDNN_HALF=0/CUDNN_HALF=1/' Makefile
make

# Copy base config and set class count
cp cfg/yolov3.cfg cfg/yolov3_training.cfg

# classes = 5
# max_batches = classes * 2000
# steps = 80%, 90% of max_batches
# filters = (classes + 5) * 3 = 30

sed -i 's/batch=1/batch=64/' cfg/yolov3_training.cfg
sed -i 's/subdivisions=1/subdivisions=16/' cfg/yolov3_training.cfg
sed -i 's/max_batches = 500200/max_batches = 4000/' cfg/yolov3_training.cfg
sed -i 's/steps=400000,450000/steps=3000,3600/' cfg/yolov3_training.cfg

sed -i '610 s@classes=80@classes=5@' cfg/yolov3_training.cfg
sed -i '696 s@classes=80@classes=5@' cfg/yolov3_training.cfg
sed -i '783 s@classes=80@classes=5@' cfg/yolov3_training.cfg

sed -i '603 s@filters=255@filters=30@' cfg/yolov3_training.cfg
sed -i '689 s@filters=255@filters=30@' cfg/yolov3_training.cfg
sed -i '776 s@filters=255@filters=30@' cfg/yolov3_training.cfg

mkdir data/backup
mkdir data/obj

# Class list + dataset metadata
echo -e "serial_number\nsurname\ngiven_name\nsex\ndob" > data/obj.names
echo -e "classes = 5\ntrain = data/train.txt\nvalid = data/test.txt\nnames = data/obj.names\nbackup = data/backup" > data/obj.data

# Download pretrained backbone
wget https://pjreddie.com/media/files/darknet53.conv.74

import glob

images = glob.glob("data/obj/*.jpg")
with open("data/train.txt", "w", encoding="utf-8") as file:
    file.write("\n".join(images))

# Start training
./darknet detector train data/obj.data cfg/yolov3_training.cfg darknet53.conv.74

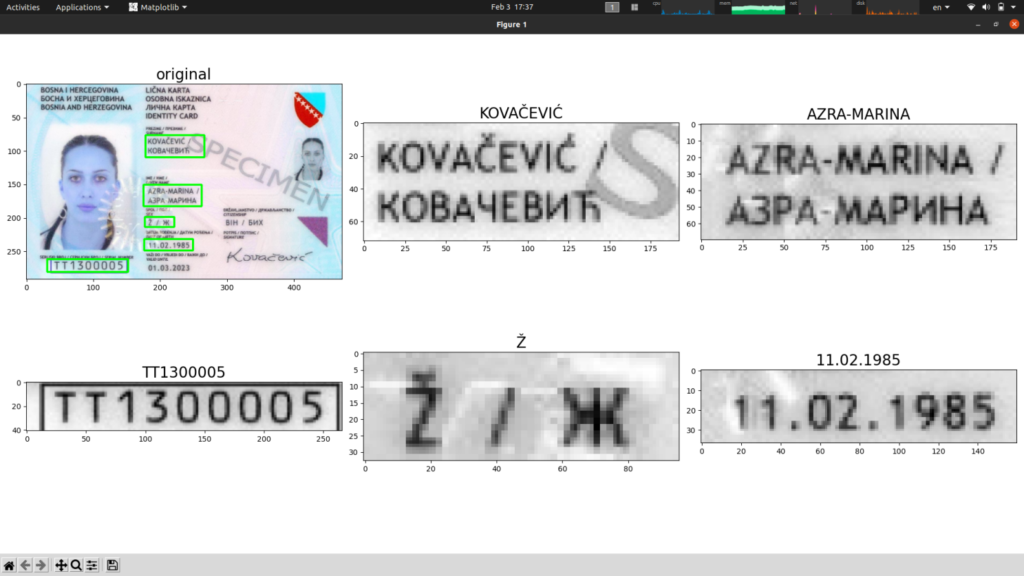

OCR handoff and post-processing

Even good detections need cleanup before OCR. We added image preprocessing and rule-based validation to improve extraction reliability:

• crop padding to prevent clipped characters
• contrast adjustments for noisy scans
• regex and field-level checks for expected formats
• retry logic with alternate preprocessing settings

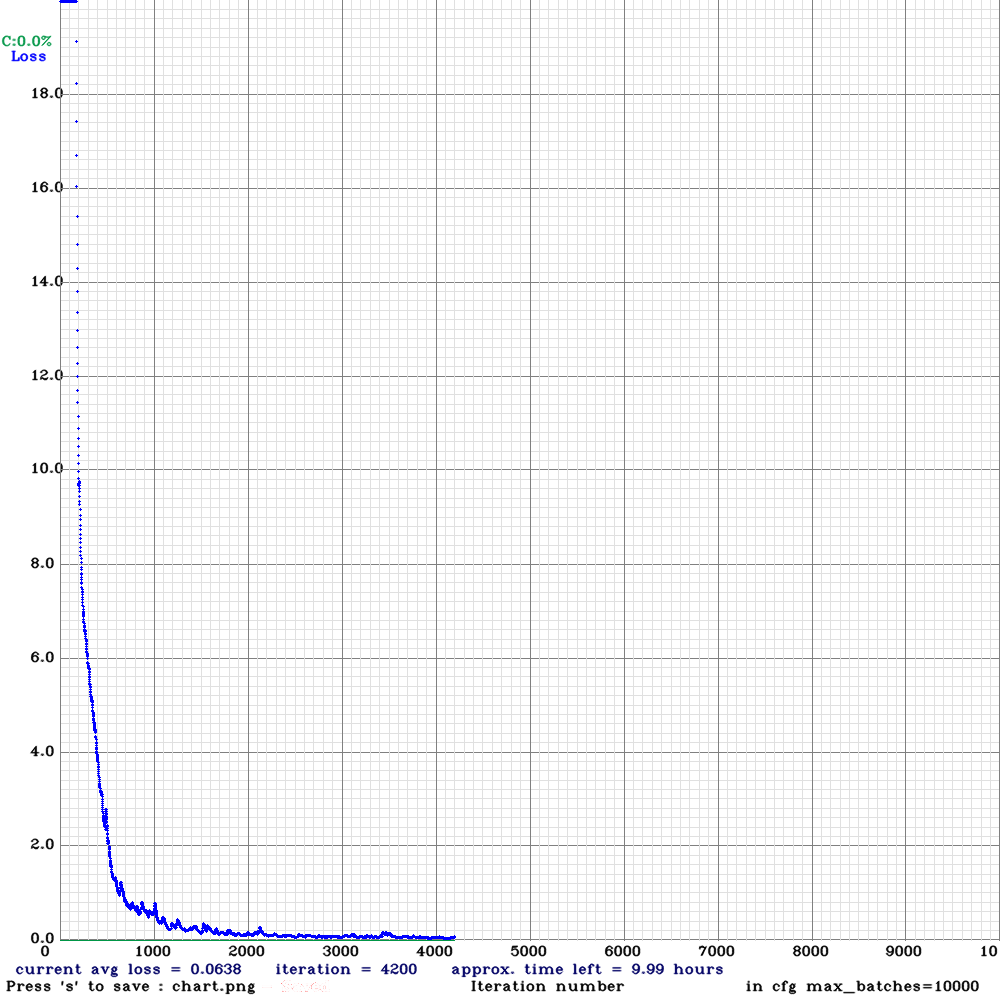

Monitoring training and validating end-to-end output

Measuring pipeline quality

End-to-end accuracy was more meaningful than detector metrics alone. A detection could count as correct while still producing OCR errors if the crop was too tight or misaligned. We tracked both detection performance and final extraction success to guide improvements.

Takeaway

YOLOv3 plus OCR can work well for structured extraction tasks when the pipeline is designed holistically. ROI quality, preprocessing, and validation logic usually determine real-world performance as much as the detector itself.
